The new Controller

Here are some pictures of the new controller being installed on the hill.

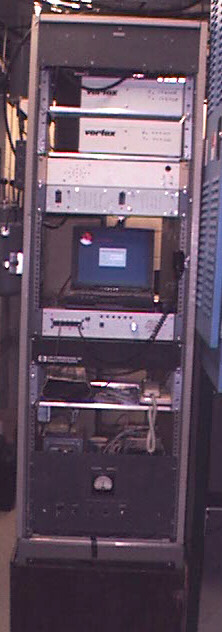

Front View

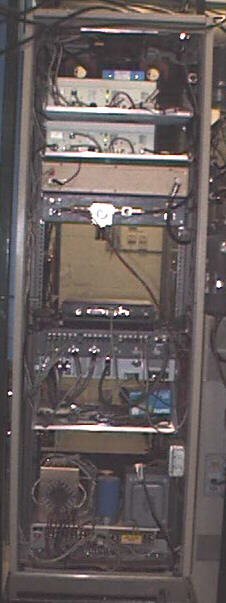

Back View



The cabinet is chained to the wall, this is earthquake country afterall! The lean is due to the photographer working on the installation for 16 hours straight. Way to go team!

Pictures of the controller under construction.

More technical details...

Design Goals

Dual Isolators

2M Vertex

450 Vertex

220 Receiver

220 Xmit

Laptop Modem Interface computer

Interface Box

RLC-3 Controller

Shelf for Misc.

Power supply / battery charger

12 Volt Golf Cart battery in box
